All Hole Patterns are designed to fit our frames, posts, and stakes. Please review the chart below to see which hole pattern will appear on your custom panels. All holes are 5/16" diameter round holes. Holes are measured from center of hole to edge of panel. NOTE: Sign panels do not come with bottom grommets unless requested.
| Material(s) | Panel Width | Hole Pattern | Top Holes on Center | Bottom Holes on Center | Top Grommets | Hole Distance from Top | Hole Distance from Bottom | Image |
| ALL MATERIALS Aluminum, Alumibond, Cor-x, Polyethelene, Polystyrene, PVC or Steel |

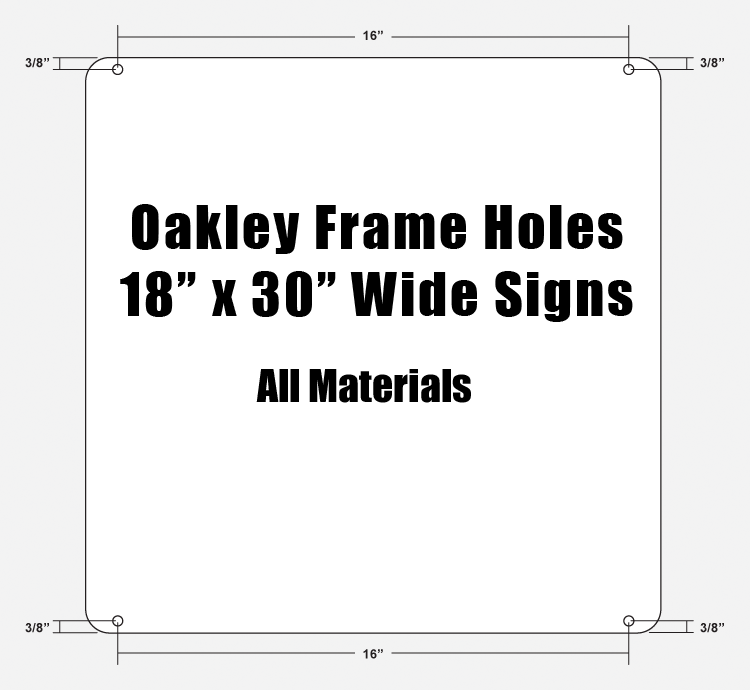

18"-30" | Oakley Frame | 16" | 16" | 3/8" | 3/8" | View | |

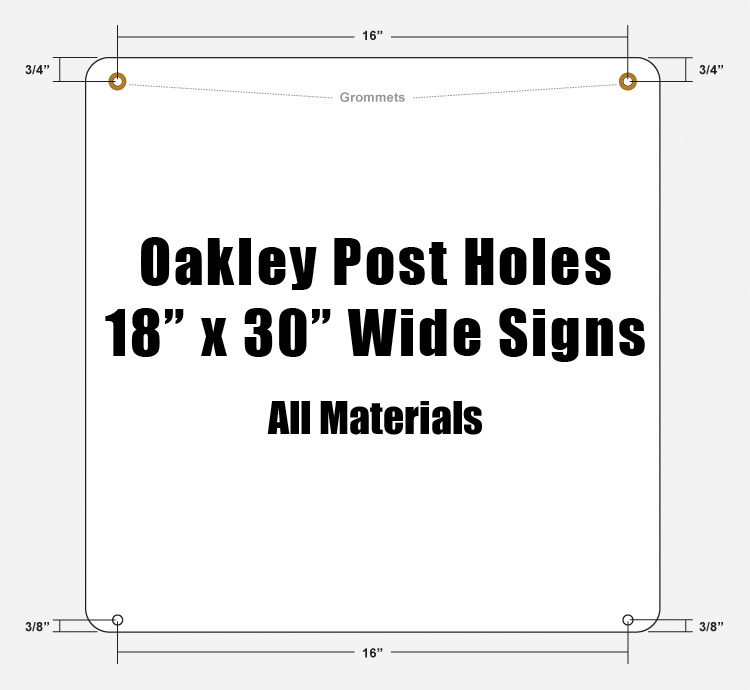

| 18"-30" | Oakley Post | 16" | 16" | 3/4" | 3/8" | View | ||

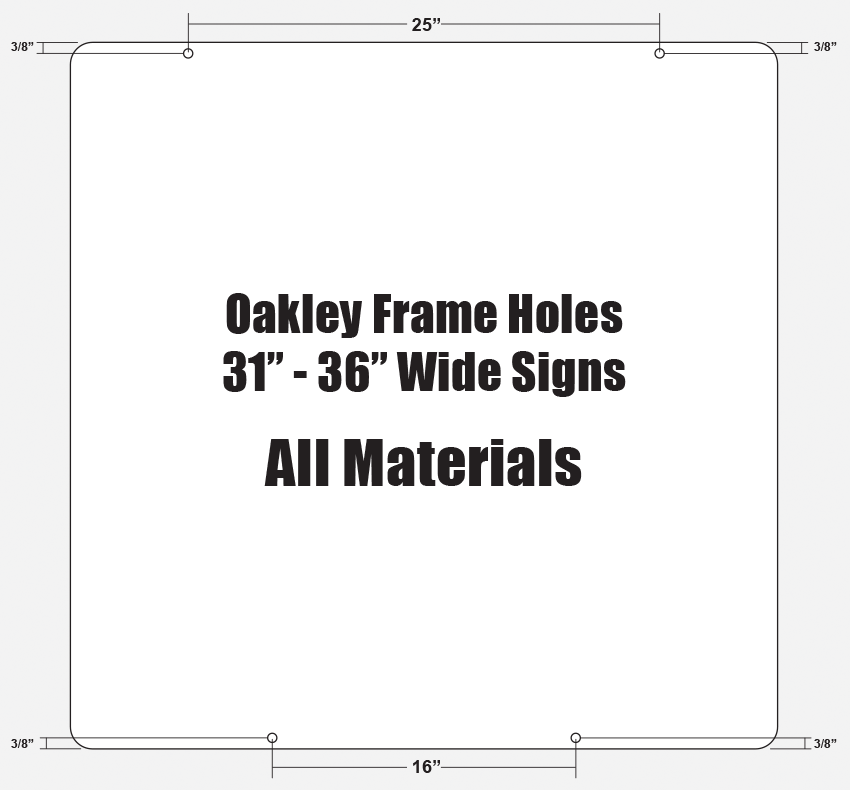

| 31"-36" | Oakley Frame | 25" | 16" | 3/8" | 3/8" | View | ||
| 31"-36" | Oakley Post | 25" | 16" | 3/4" | 3/8" | View |
| Panel Type | Description | Image |

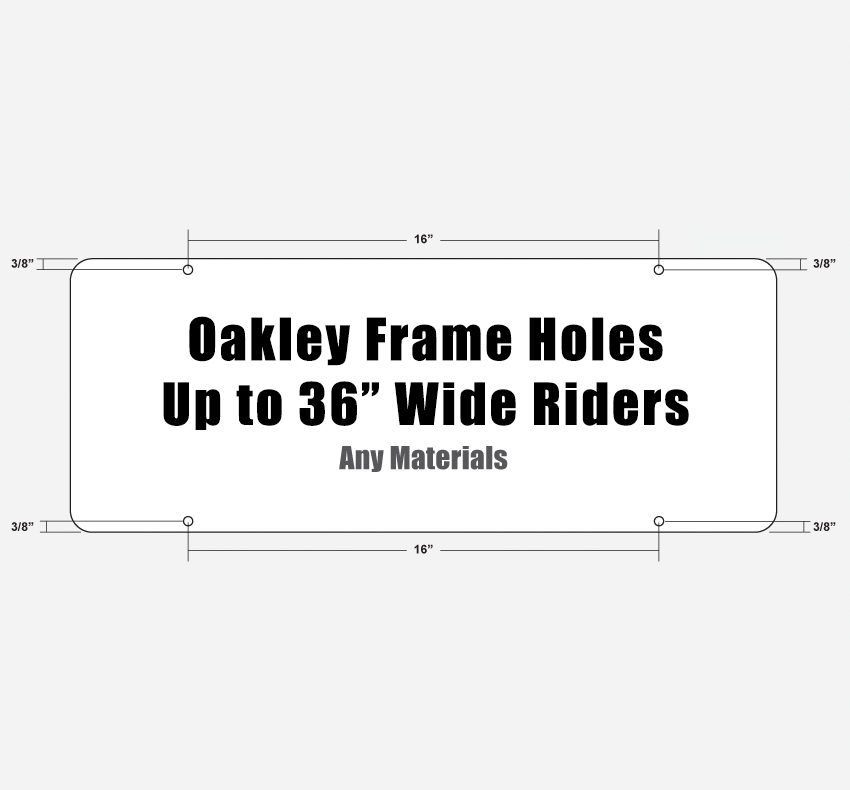

| RIDERS Up to 36" Wide (Any material) |
Top and Bottom Holes: Holes are 16" on center. All holes are 3/8" in from top and bottom edge. Grommets are not included. | View |

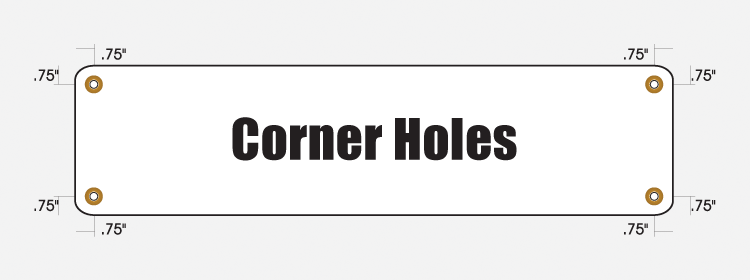

| CORNER HOLES | Holes with grommets located in each corner 3/4" from the edges. | View |
| COMMERCIAL SIGNS |

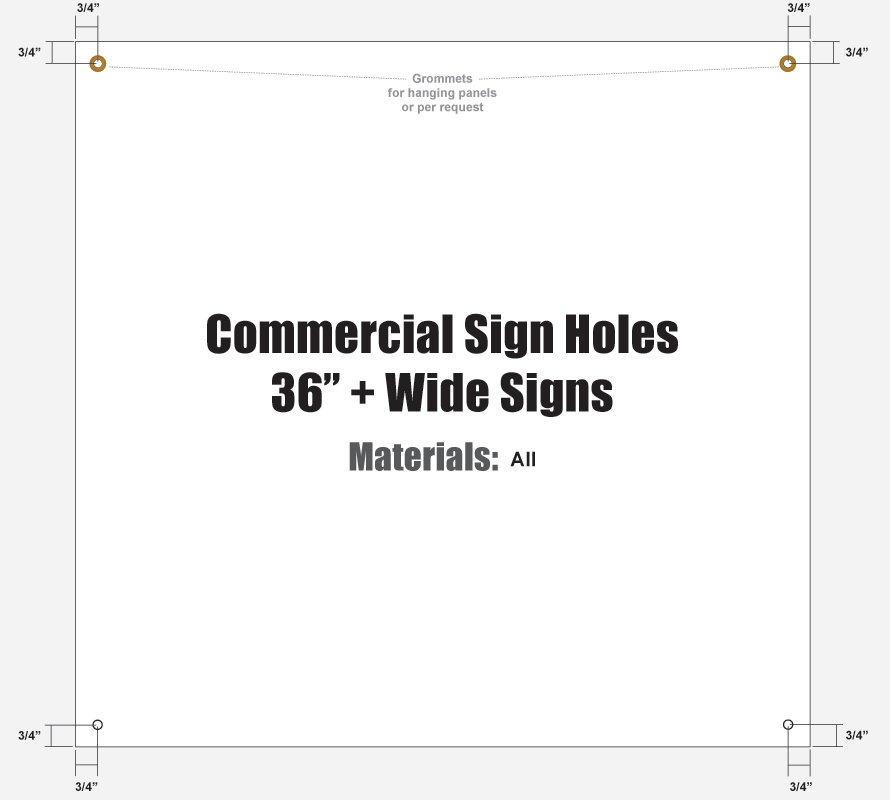

Used for 36" + Wide Commercial Signs. All Holes are 3/4" from top, bottom, and side edges. 2 Top Grommets are included for hanging panels or per request. | View |

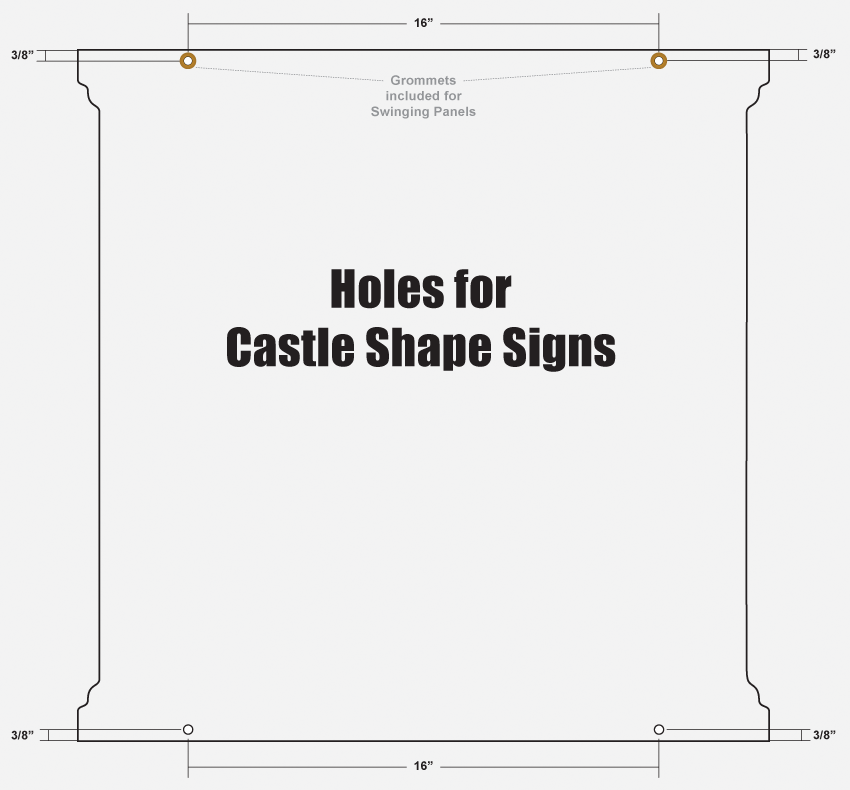

| CASTLE SIGNS | Top Holes: Holes are 16" on center and 3/8" from the top edge. Grommets are included for hanging panels. Bottom Holes: Two holes are 16" on center and are 3/8" in from the edge. | View |

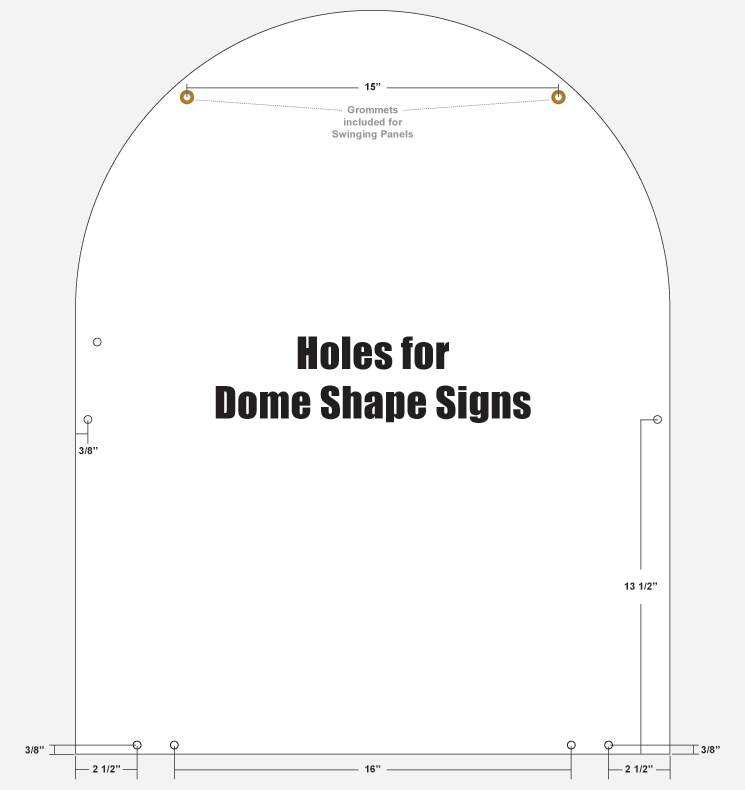

| DOME | Top Holes: Holes are 15" on center and 3/4" from the top edge. 2 side holes are 13.5" up from the bottom of the panel and 3/8" in from edge. Grommets are included for hanging panels. Bottom Holes: Inside two holes are 16" on center and outside two holes are 2 1/2" from edges. Holes are 3/8" in from the edge. | View |

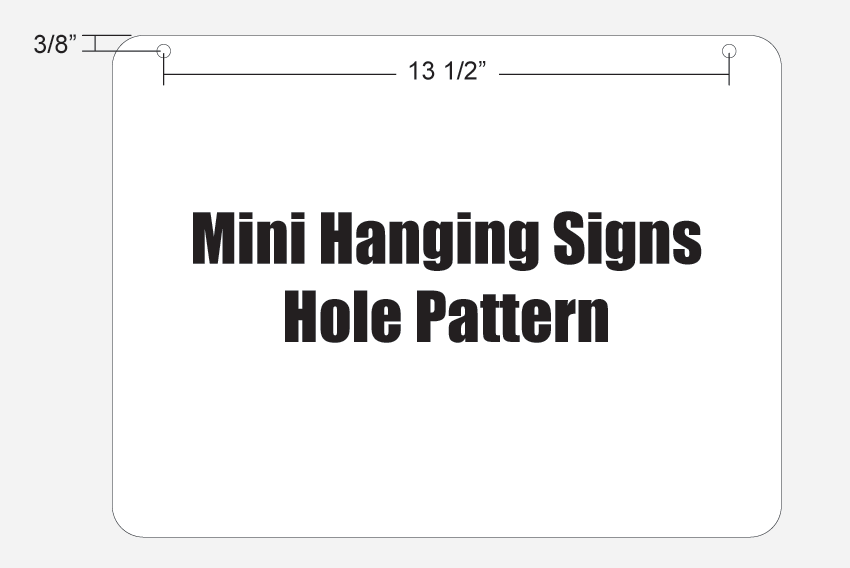

| MINI HANGING | Top Holes: Two holes are 13.5" on center. Holes are 3/8" in from the edge. Grommets are not included. No bottom holes. | View |

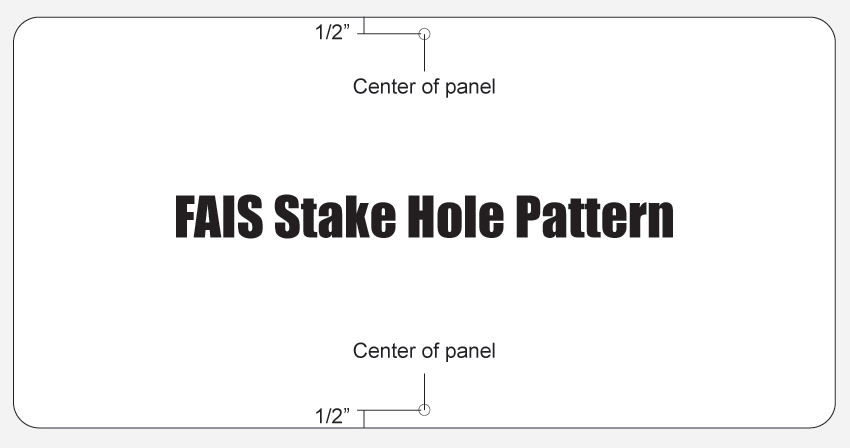

| FAIS Stake | Top and Bottom Holes: There are two center holes, one top and one bottom. Holes are 1/2" in from the top and bottom edges. Grommets are not included. | View |
| 13 oz. vinyl banner |
Standard banner holes start at the corner and measure every 24" along the width of the banner. If the banner is not wide enough to add grommets every 24", we may evenly divide the grommets along the banner width or work from the center out. | |
| Panel Type | Description | Image |

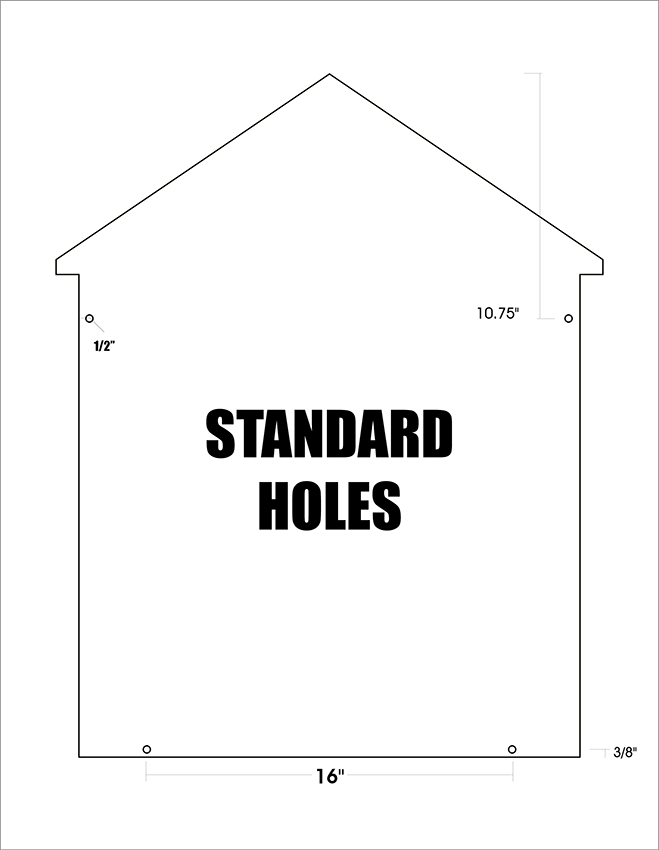

| STANDARD | Top Holes : Holes are 19" up from the top and 1/2" from the sides. Bottom Holes: Two holes are 16" on center and are 3/8" in from the edge. | View |

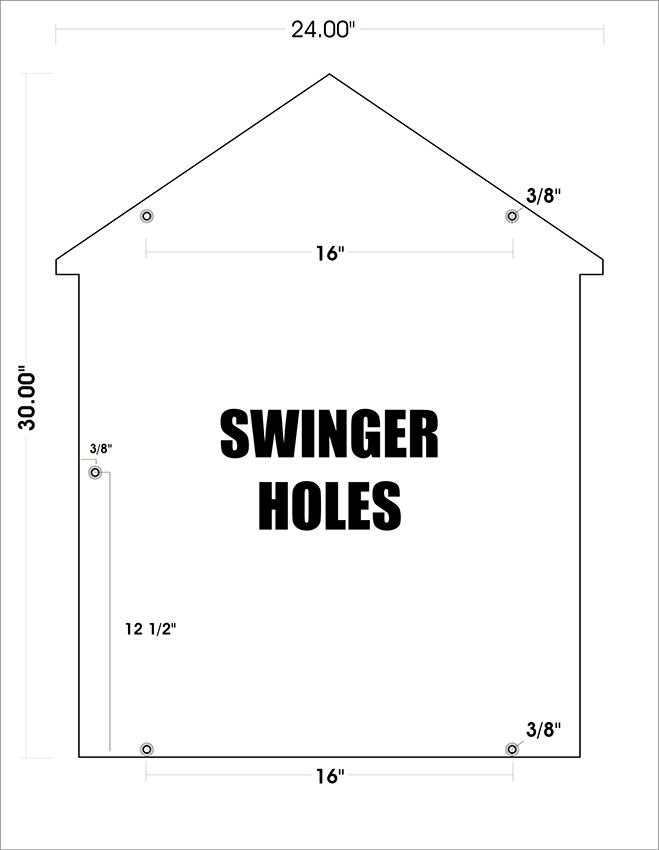

| SWINGER | This pattern includes top and bottom holes at 16'' on center, 3/8'' from the top and bottom, with one side hole 12 1/2'' up from the bottom and 3/4'' from the side. Silver grommets in all five (5) holes. | View |
| STANDARD/SWINGER | This pattern includes top and bottom holes at 16'' on center, 3/8'' from the top and bottom; two (2) holes at 19'' from the bottom and 1/2'' from the sides, with one side hole at 12 1/2'' up from the bottom and 3/4'' from the side. Silver grommets are included in all but the two (2) holes at 19'' from the bottom. | View |
